Overview

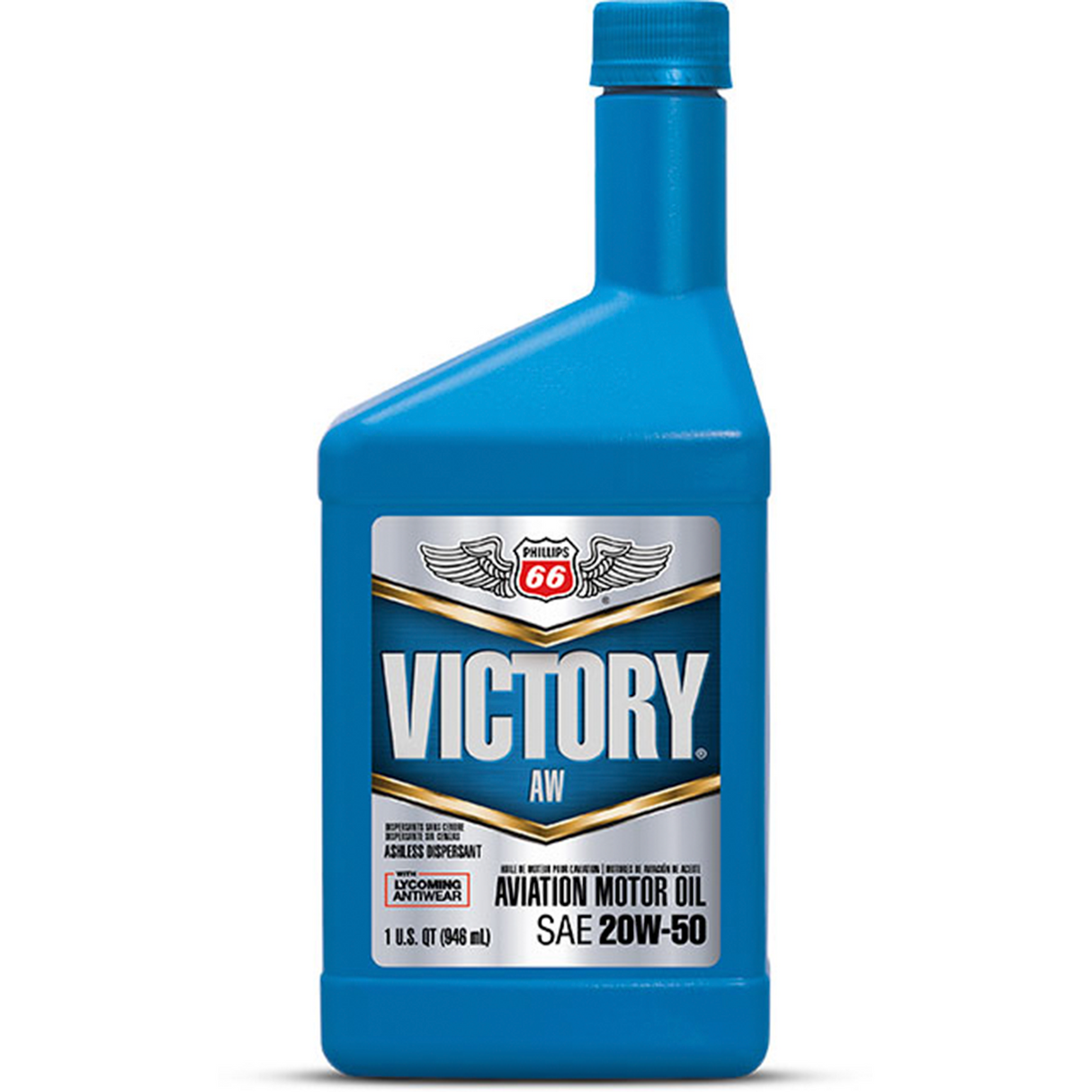

Phillips 66® Victory AW 20W-50 Oil is an ashless dispersant, multi-grade engine oil specially formulated for year-round use in aircraft piston engines. Victory AW 20W-50 is pre-blended with the proper concentration of antiscuff/antiwear additive (LW-16702) mandated by Lycoming Service Bulletins 446E and 471B and Service Instruction 1409C. It provides distinct performance benefits compared with single-grade engine oils, including easier starting and faster oil circulation at low temperatures, reduced warm-up time, and reduced oil consumption in most engines. It maintains its film strength under high loads and at high temperatures to protect against wear and piston scuffing.

The ashless dispersant formulation helps minimize the formation of engine sludge, varnish, piston deposits and combustion chamber deposits, resulting in a much cleaner engine compared with the use of straight (non-dispersant) mineral oils.

Victory AW 20W-50 Aviation Oil is recommended for use in opposed piston engines. It can replace Commercial Grade 65, 80 or 100 single-grade engine oils with no sacrifice in performance.

Features

Ashless dispersant helps minimize engine sludge and varnish deposits for a cleaner engine

Pre-blended with Lycoming-approved antiwear additive

High film strength for protection against wear and piston scuffing

High viscosity index and low pour point for use over a wide temperature range

Protects against rust and corrosion

Formulated with the same high-quality base oils as used in Phillips 66 X/C® Aviation Oil

Specifications

• SAE Grade: 20W-50
• Gravity, °API: 30.1
• Specific Gravity @ 60°F: 0.876
• Density, lbs/gal @ 60°F: 7.29
• Color, ASTM D1500: 2.5
• Flash Point (COC), °C (°F): 235 (455)
• Pour Point, °C (°F): -33 (-27)
• Viscosity, Kinematic
• cSt @ 40°C: 159
• cSt @ 100°C: 19.8
• Viscosity Index: 144
• Cold Cranking Viscosity, cP: 5,200
• @ (°C): (-15)
• Acid Number, ASTM D664, mg KOH/g: 0.15
• Ash Content, SAE J1787, wt %: Nil
• Copper Corrosion, ASTM D130: Pass
• Foam Test, ASTM D892: Pass

Approvals

• Avco Lycoming Material Specification No. 301G
• Pratt & Whitney Service Bulletin No. 1183 Rev. U
• SAE Standard J1899
• Teledyne Continental Material Specification MHS-24B
• U.S. Military Specification MIL-L-22851D (obsolete) for additive treatment QPL
• QPL approval number: D07L2-50
